| Place of Origin: | china |
| اسم العلامة التجارية: | TB |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | ق 81 |
| الحد الأدنى لكمية: | 20pcs |
|---|---|
| الأسعار: | $100/pack |
| تفاصيل التغليف: | حالة خشبية |
| وقت التسليم: | 5-8days |
| شروط الدفع: | خطاب الاعتماد، D/A، T/T، D/P، ويسترن يونيون |
| القدرة على العرض: | 10000 علبة / شهر |
| نموذج: | لوحة مبادل حراري | طول اللوحة: | 1000 ملم |
|---|---|---|---|
| مادة: | الفولاذ المقاوم للصدأ (AISI 316، AISI 304) | مادة اللوحة: | الفولاذ المقاوم للصدأ |
| سماكة الطبق: | 0.4 ملم إلى 1.2 ملم | نوع اللوحة: | نمط شيفرون |
| أقصى ضغط العمل: | 1.6 ميجا باسكال | نوع اللوحة: | مبادل حراري ذو لوحة حشية |

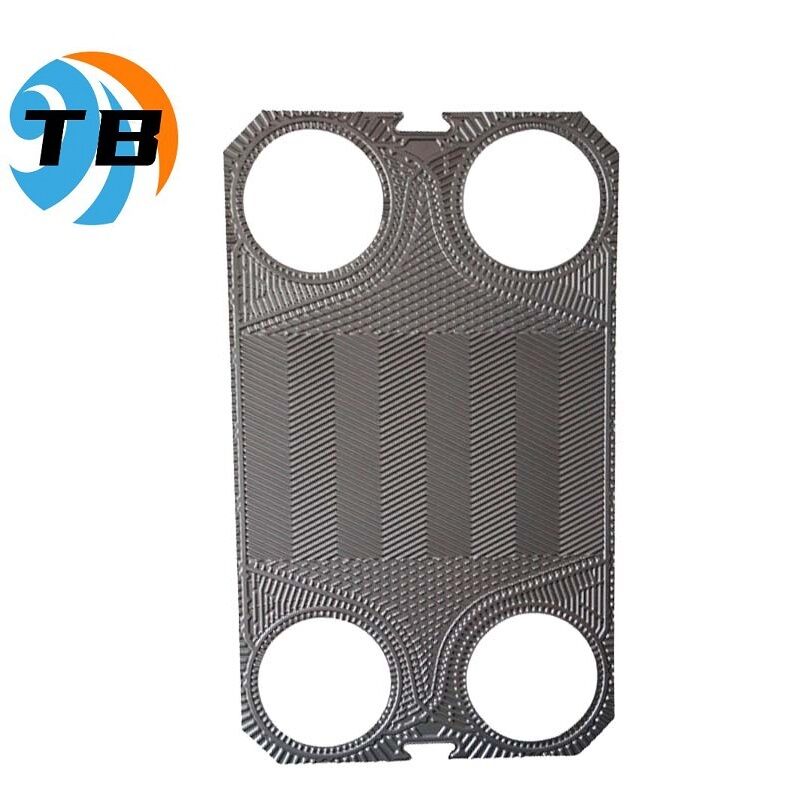

The Sondex plate heat exchanger is a highly efficient gasket plate heat exchanger designed to meet the rigorous demands of various industrial applications. Renowned for its superior thermal performance and robust construction, the Sondex thermal exchange plate offers an optimal solution for heat transfer processes requiring reliability, durability, and ease of maintenance. Crafted from premium stainless steel materials such as AISI 316 and AISI 304, these heat exchanger plates ensure excellent corrosion resistance and long-lasting service life, making them suitable for use in diverse environments including chemical processing, food and beverage, HVAC, and marine industries.
One of the standout features of the Sondex fluid heat exchange plate is its gasket type design, which allows for easy disassembly and cleaning without compromising the integrity of the sealing. The gaskets are available in three high-quality materials: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton (Fluoroelastomer). This variety ensures compatibility with a wide range of fluids and operating conditions, including aggressive chemicals, high temperatures, and oils. The gasket material selection enhances the adaptability of the Sondex plate heat exchanger, providing users with tailored solutions to their specific heat transfer needs.
The heat transfer area of the Sondex heat exchanger plate is 2.5 square meters, offering a substantial surface for efficient thermal exchange. This generous area facilitates high heat transfer rates, optimizing energy usage and reducing operational costs. The plate design promotes turbulent flow, which minimizes fouling and enhances heat transfer efficiency. The corrugated pattern of the plates increases the turbulence of the fluids, promoting better heat exchange and reducing the risk of scaling or deposit buildup.
Constructed from stainless steel grades AISI 316 and AISI 304, the Sondex thermal exchange plate balances strength, corrosion resistance, and cost-effectiveness. AISI 316 stainless steel is particularly valued for its excellent resistance to chlorides and other aggressive agents, making it ideal for more demanding applications, while AISI 304 offers a cost-efficient option for less corrosive environments. This dual material offering allows customers to select the most appropriate plate material based on their specific operational requirements.
The Sondex plate heat exchanger is engineered for versatility and ease of installation. Its compact design allows for installation in tight spaces, while its modular construction facilitates capacity expansion and maintenance. The gasket plate design also simplifies inspection and cleaning, reducing downtime and improving overall system uptime. Additionally, the robust construction ensures reliable operation under varying pressures and temperatures, accommodating a wide range of industrial processes.
In summary, the Sondex fluid heat exchange plate stands out as a premium solution in the field of heat exchangers, combining advanced gasket technology, superior materials, and optimized design to deliver outstanding thermal performance. Whether your application involves heating, cooling, or heat recovery, the Sondex plate heat exchanger offers a dependable and efficient means of managing thermal energy in your system. Its combination of a 2.5m² heat transfer area, choice of gasket materials including NBR, EPDM, and Viton, and high-quality stainless steel construction make it a versatile and long-lasting choice for industries demanding excellence in heat exchange technology.
| Material | Stainless Steel (AISI 316, AISI 304) |
| Heat Transfer Area | 2.5 m² |
| Model | Heat Exchanger Plate |
| Plate Type | Chevron Pattern |
| Connection Size | DN50 |
| Weight | Depends On Size, Typically 5 To 50 Kg |
| Plate Length | 1000 mm |
| Max Working Pressure | 1.6 MPa |
| Gasket Material | NBR, EPDM, Viton |
| Plate Thickness | 0.4 mm To 1.2 mm |
The TB S17 model from the Sondex industrial heat plate series is a high-performance gasket plate heat exchanger designed to meet the demanding requirements of various industrial applications. Manufactured in China and certified under ISO9001 standards, this Sondex plate heat transfer unit ensures reliable and efficient heat exchange with superior build quality. Constructed from premium stainless steel materials, including AISI 316 and AISI 304, the S17 model offers excellent corrosion resistance and durability, making it ideal for use in harsh operating environments.
The Sondex plate heat transfer unit features a chevron pattern plate type, which significantly enhances heat transfer efficiency by promoting turbulent flow and maximizing surface contact between fluids. With a heat transfer area of 2.5m², this unit is perfectly suited for medium-scale applications where precise temperature control and energy efficiency are critical. The robust design supports a maximum operating pressure of 25 bar, ensuring safe and stable performance under high-pressure conditions.
This versatile heat exchanger plate finds extensive application across numerous industries and scenarios. In the chemical and petrochemical sectors, it is used for cooling and heating process fluids, ensuring optimal reaction conditions and energy savings. The food and beverage industry benefits from the hygienic stainless steel construction of the Sondex plate heat transfer unit, which facilitates sanitary heat exchange processes essential for pasteurization, sterilization, and temperature regulation of liquids.
In HVAC systems, the TB S17 gasket plate heat exchanger is employed to recover and transfer heat between air and water circuits or between different fluid streams, improving overall system efficiency and reducing energy consumption. Additionally, it is widely used in power plants for cooling lubricants and oils, in pharmaceutical manufacturing for precise thermal management, and in marine applications for engine cooling and heat recovery.
Overall, the TB S17 model from the Sondex industrial heat plate lineup is an excellent choice for any application requiring a reliable, efficient, and durable heat transfer solution. Its combination of high-quality stainless steel materials, ISO9001 certification, and advanced chevron plate design makes it a trusted component in various industrial heat exchange scenarios, delivering consistent and superior performance under demanding conditions.
Our TB S17 Sondex heat exchanger plate offers exceptional customization services to meet your specific requirements. Manufactured in China and certified with ISO9001, this Sondex stainless steel heat plate is designed for durability and high performance. With a maximum operating pressure of 25 Bar, the gasket plate heat exchanger ensures reliable operation under demanding conditions.
The Sondex heat exchanger plate features a plate width of 500mm and is made from high-quality stainless steel, providing excellent corrosion resistance and longevity. The weight varies depending on the size, typically ranging from 5 to 50 kg, allowing for flexible applications across different industries.
Our customization services include tailored plate dimensions, material options, and sealing configurations to perfectly match your system needs. Trust the TB S17 Sondex heat exchanger plate for efficient heat transfer and robust performance in your heat exchange processes.
