| Place of Origin: | china |
| اسم العلامة التجارية: | TB |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | CG16 |
| الحد الأدنى لكمية: | 20pcs |
|---|---|
| الأسعار: | $100/pack |
| تفاصيل التغليف: | حالة خشبية |
| وقت التسليم: | 5-8days |
| شروط الدفع: | خطاب الاعتماد، D/A، T/T، D/P، ويسترن يونيون |
| القدرة على العرض: | 10000 علبة / شهر |
| نوع اللوحة: | نمط شيفرون | درجة حرارة التشغيل القصوى: | 225 درجة مئوية |
|---|---|---|---|
| نوع اللوحة: | مبادل حراري ذو لوحة حشية | منطقة نقل الحرارة: | 2.5 م² |
| عرض اللوحة: | 500 ملم | حجم الاتصال: | DN50 |
| وزن: | يعتمد على الحجم، عادة من 5 إلى 50 كجم | أقصى ضغط العمل: | 1.6 ميجا باسكال |

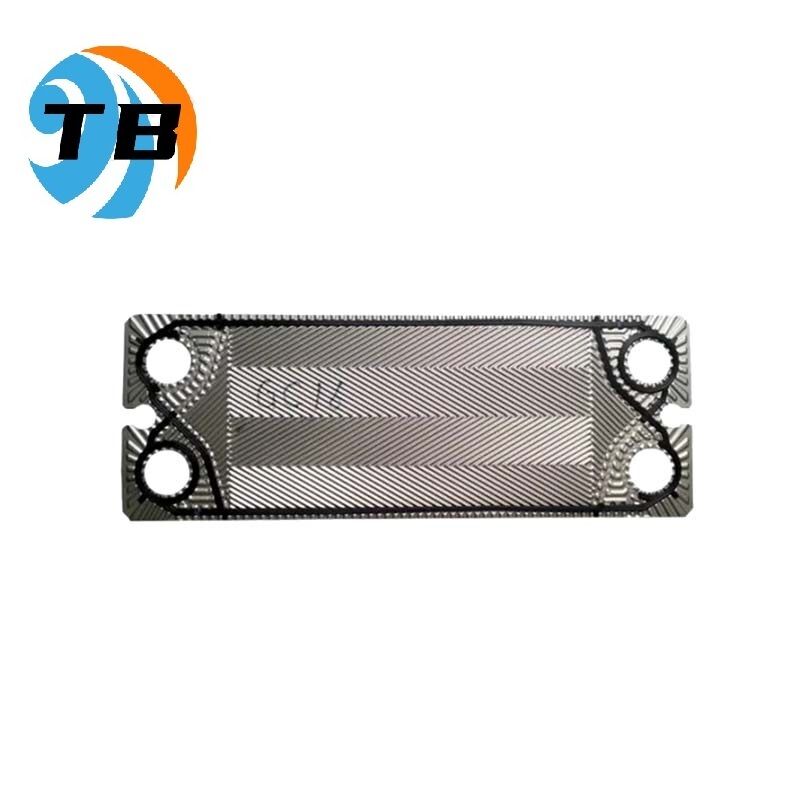

The Sondex Heat Exchanger Plate is a high-quality component designed to optimize thermal exchange processes in various industrial applications. Known for its robust construction and reliable performance, this product is an essential part of the Sondex Thermal Exchange Plate series, offering efficient heat transfer capabilities and durability. Manufactured with precision and attention to detail, the Sondex Heat Exchanger Plate ensures maximum efficiency and longevity in heat exchanger systems.
One of the defining features of the Sondex Heat Exchanger Plate is its construction material. Made from premium-grade stainless steel, the plate provides excellent resistance to corrosion, high temperatures, and mechanical stress. This makes it an ideal choice for use in demanding environments where durability and performance are critical. The stainless steel material also ensures that the plate maintains its structural integrity over prolonged periods, reducing the need for frequent replacements and maintenance.
The plate length is standardized at 1000mm, providing a versatile size that fits a wide range of heat exchanger designs and applications. This length offers a balance between surface area for heat transfer and ease of installation, making it suitable for both new systems and retrofit projects. Additionally, the connection size of DN50 facilitates compatibility with common piping standards, ensuring seamless integration with existing equipment and piping networks.
The weight of the Sondex Heat Exchanger Plate varies depending on the specific size and configuration, typically ranging from 5 to 50 kilograms. This range allows for flexibility in selecting the appropriate plate for different thermal exchange requirements, accommodating various flow rates, temperatures, and pressure conditions. The weight is carefully controlled to maintain structural strength while optimizing handling and installation processes.
As a part of the Sondex Metal Heat Transfer Plate product line, this heat exchanger plate exemplifies the company’s commitment to innovation and quality. The metal heat transfer plate design enhances the thermal conductivity and efficiency of the heat exchanger, enabling effective heat transfer between fluids with minimal energy loss. The unique plate patterns and surface treatments incorporated in the Sondex Thermal Exchange Plate optimize turbulence and fluid distribution, which improves heat transfer rates and reduces fouling.
In industrial sectors such as chemical processing, power generation, HVAC, food and beverage, and pharmaceuticals, the Sondex Heat Exchanger Plate performs a critical role in maintaining optimal process temperatures and energy efficiency. Its reliable operation helps businesses reduce operational costs and improve sustainability by minimizing energy consumption and enhancing system longevity. The use of stainless steel also ensures hygiene and cleanliness, which is especially important in food and pharmaceutical applications.
Overall, the Sondex Heat Exchanger Plate is a versatile and durable solution for heat transfer needs across a broad spectrum of industries. Its stainless steel construction, standardized length of 1000mm, DN50 connection size, and weight range of 5 to 50 kilograms combine to offer a high-performance product that meets stringent industrial standards. Whether used as part of a new installation or as a replacement component, the Sondex Thermal Exchange Plate guarantees reliable and efficient operation, making it a trusted choice for engineers and maintenance professionals worldwide.
| Material | Stainless Steel (AISI 316, AISI 304) |
| Plate Type | Gasket Plate Heat Exchanger |
| Gasket Material | NBR, EPDM, Viton |
| Weight | Depends On Size, Typically 5 To 50 Kg |
| Max Operating Temperature | 225°C |
| Plate Material | Stainless Steel |
| Plate Thickness | 0.4 Mm To 1.2 Mm |
| Plate Length | 1000 mm |
| Heat Transfer Area | 2.5 m² |
| Model | Heat Exchanger Plate |
The TB S17 model from the Sondex brand is a high-performance gasket plate heat exchanger designed to meet diverse industrial needs. Originating from China and certified with ISO9001, this Sondex Heat Exchanger Plate Element is engineered with a chevron pattern, which significantly enhances heat transfer efficiency and ensures reliable operation under demanding conditions. With a maximum operating temperature of 225°C and a heat transfer area of 2.5m², the S17 model is suitable for a wide range of applications that require precise and efficient thermal management.
The Sondex Corrugated Heat Plate design provides an optimized flow pattern that maximizes heat exchange while minimizing pressure drop. This makes the Sondex Metal Heat Transfer Plate an ideal choice in industries such as HVAC, chemical processing, power generation, and food and beverage production. In HVAC systems, the TB S17 plate heat exchanger is widely used for heating, cooling, and heat recovery processes, providing energy savings and improved system performance. Its robust construction and gasket sealing make it suitable for handling various fluids, including oils, water, and aggressive chemicals.
In chemical and petrochemical industries, the Sondex Heat Exchanger Plate Element excels in heat recovery and temperature control applications, ensuring process stability and energy efficiency. The compact size and modular nature of the gasket plate heat exchanger allow for easy maintenance and scalability, which is critical in fast-paced industrial environments. The typical weight of the unit varies from 5 to 50 kg depending on its size, facilitating easy installation and integration into existing systems.
Furthermore, the TB S17 model’s versatility extends to food processing where hygiene and temperature control are paramount. The Sondex Corrugated Heat Plate ensures rapid heat transfer necessary for pasteurization and sterilization processes, maintaining product quality and safety standards. Its stainless-steel construction and gasket sealing meet stringent industry requirements, making it a dependable solution across multiple sectors.
Overall, the TB S17 Sondex gasket plate heat exchanger combines advanced design, durability, and high performance. Its chevron patterned plates and certified quality make it an indispensable component for applications demanding efficient heat transfer, reliability, and ease of maintenance.
TB offers customized product customization services for the Sondex heat exchanger plate product, model number S17. Originating from China and certified with ISO9001, this gasket plate heat exchanger features a chevron pattern plate type designed for high performance.
The Sondex High Efficiency Heat Plate is made from premium stainless steel materials, including AISI 316 and AISI 304, ensuring durability and excellent corrosion resistance. The weight of the plates depends on the size, typically ranging from 5 to 50 kg to suit various industrial applications.
Our customization services focus on tailoring the Sondex Industrial Heat Exchanger Plate to meet specific operational requirements, optimizing heat transfer efficiency and mechanical strength. Whether you require modifications in plate dimensions, thickness, or material grade, TB can deliver bespoke solutions.
Additionally, the Sondex Metal Heat Transfer Plate is engineered to provide superior thermal performance and reliability in demanding environments. Trust TB to provide precise customization for your heat exchanger plates to enhance your system's overall efficiency and longevity.
Our Sondex heat exchanger plate products are designed to provide efficient and reliable thermal performance for a wide range of industrial applications. To ensure optimal operation and longevity of your heat exchanger, we offer comprehensive technical support and services.
Our technical support team is available to assist with installation guidance, troubleshooting, maintenance advice, and performance optimization. We provide detailed documentation, including product manuals, installation instructions, and maintenance schedules to help you get the best results from your Sondex heat exchanger plates.
We also offer customized solutions tailored to your specific process requirements, including plate design modifications, material selections, and gasket options. Our experts can help you select the right plate type and configuration to maximize heat transfer efficiency and minimize downtime.
In addition, we provide repair and refurbishment services to extend the life of your existing heat exchanger plates. Our service includes plate replacement, gasket renewal, and pressure testing to ensure your equipment continues to operate safely and efficiently.
For ongoing support, we recommend regular inspections and maintenance checks. Our technical team can schedule and conduct these services to identify potential issues before they impact your production.
By choosing Sondex heat exchanger plates and support services, you are investing in quality, durability, and expert assistance that ensures your heat exchange systems perform at their best throughout their operational life.
