| Place of Origin: | china |
| اسم العلامة التجارية: | TB |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | نهاية V60 |
| الحد الأدنى لكمية: | 20pcs |
|---|---|
| الأسعار: | $100/pack |
| تفاصيل التغليف: | حالة خشبية |
| وقت التسليم: | 5-8days |
| شروط الدفع: | خطاب الاعتماد، D/A، T/T، D/P، ويسترن يونيون |
| القدرة على العرض: | 10000 علبة / شهر |
| ايزو: | نعم | ضغط الاختبار: | 1.3/2.1 ميجا باسكال |
|---|---|---|---|
| مادة اللوحة: | تيتانيوم / نيكل / هاستولي / ستانلس ستيل | نموذج من اللوحة: | التيتانيوم |
| منطقة نقل الحرارة: | 0.1 - 50 م² | التطبيقات: | التدفئة والتهوية وتكييف الهواء والمعالجة الكيميائية والأغذية والمشروبات |
| نموذج: | 200-80 د | نوع الاتصال: | توصيل الأنابيب |
The plate heat exchanger is an essential component in various industrial applications, designed to efficiently transfer heat between two fluids. With a heat transfer area ranging from 0.1 to 50 square meters, this versatile equipment can accommodate a wide spectrum of heating and cooling requirements. Whether used in HVAC systems, chemical processing, power plants, or food and beverage industries, the plate heat exchanger delivers reliable and efficient thermal performance.

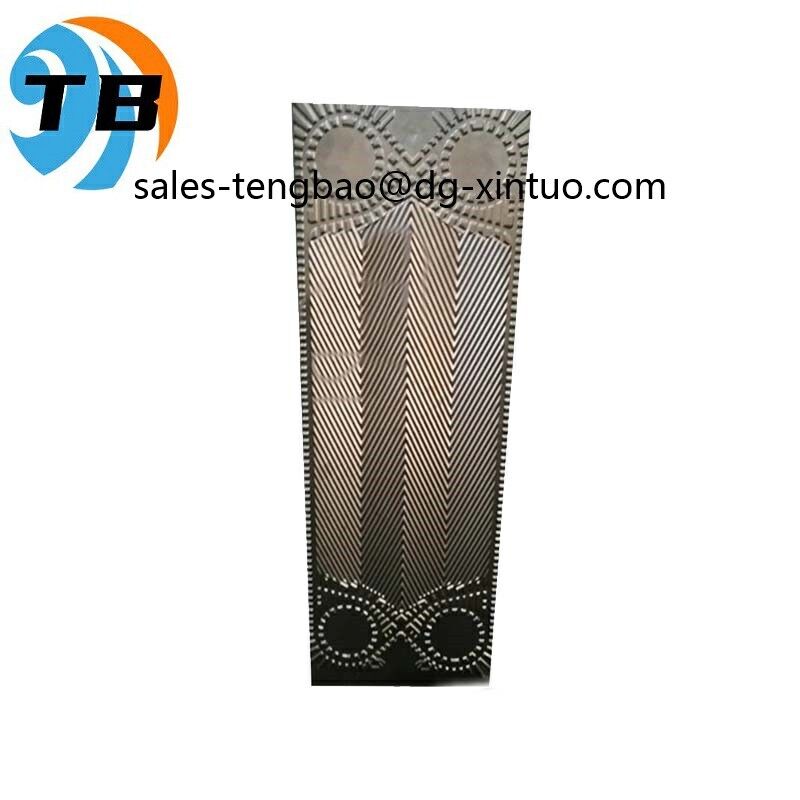

One of the key features of this plate heat exchanger is its advanced design, which maximizes heat transfer efficiency while minimizing the overall footprint. The exchanger consists of a series of thin, corrugated plates stacked together, creating multiple channels through which hot and cold fluids flow in alternating paths. This structure significantly enhances turbulence and heat transfer rates, making the plate type heat exchanger an optimal choice for energy-saving applications.
Among the variations available, the brazed plate heat exchanger stands out for its compact size and robust construction. By brazing the plates together using high-quality solder, this type of heat exchanger eliminates the need for gaskets, allowing it to withstand higher pressures and temperatures. Its corrosion-resistant properties and compact design make the brazed plate heat exchanger particularly suitable for refrigeration, air conditioning, and other demanding environments.
For applications requiring high durability and resistance to aggressive fluids, the stainless steel plate heat exchanger offers an excellent solution. Constructed from premium stainless steel plates, this exchanger provides superior corrosion resistance, mechanical strength, and longevity. The stainless steel plate heat exchanger is widely used in pharmaceutical, food processing, and chemical industries where hygiene and material integrity are critical.
The choice of plate material is a vital aspect of the plate heat exchanger's performance and durability. Options include titanium, nickel, Hastelloy, and stainless steel, each offering unique benefits. Titanium plates are known for their exceptional corrosion resistance in seawater and other harsh environments. Nickel plates provide excellent resistance to alkalis and acids, while Hastelloy plates are ideal for highly corrosive chemical processes. Stainless steel plates combine strength, corrosion resistance, and cost-effectiveness, making them a popular choice across many sectors.
Ensuring the safety and reliability of the plate heat exchanger, the gaskets used are manufactured from FDA-certified NBR (Nitrile Butadiene Rubber). This material not only complies with stringent food safety standards but also offers excellent sealing performance and chemical resistance. The gaskets contribute to leak-proof operation and ease of maintenance, providing peace of mind for operators in sensitive applications.
In terms of durability, the plate heat exchanger is rigorously tested to withstand pressures of 1.3 to 2.1 MPa, ensuring it can operate safely under demanding conditions. This robust test pressure rating guarantees the exchanger's structural integrity and long service life, even in high-pressure systems.
The aesthetic design of the plate heat exchanger is also noteworthy. Available in silver, yellow, and brown colors, the exchanger not only meets technical requirements but also fits well within various industrial settings. The color options help in easy identification and can complement the visual standards of different facilities.
In summary, the plate heat exchanger combines superior heat transfer efficiency, versatile material options, and reliable sealing solutions to meet the diverse demands of modern industries. Whether selecting a plate type heat exchanger for general applications, a brazed plate heat exchanger for compact and high-pressure needs, or a stainless steel plate heat exchanger for corrosion resistance, this product offers outstanding performance and durability. Its wide range of heat transfer areas, FDA-certified gaskets, and rigorous pressure testing make it a trusted choice for engineers and plant managers worldwide.
| Model | 200-80D |
| Working Pressure | 3.0 MPa |
| Test Pressure | 1.3 / 2.1 MPa |
| Heat Transfer Area | 0.1 - 50 m² |
| Weight | 50 kgs |
| Connection Type | Connecting Pipes |
| Model of Plate | Titanium |
| Gasket | FDA Certificate NBR |
| ISO Certified | Yes |
| Machinery Test Report | Provided |
The TB A055 stainless steel plate heat exchanger, proudly manufactured in China and certified under ISO9001 standards, is designed to deliver exceptional performance across a wide range of industrial and commercial applications. Renowned for its high heat transfer efficiency, this brazed plate heat exchanger is an ideal solution for processes requiring reliable and efficient thermal management.
One of the primary application occasions for the TB A055 plate and frame heat exchanger is in HVAC systems, where it is used to transfer heat between two fluids without mixing them. Its compact design and high efficiency make it perfect for heating and cooling systems in commercial buildings, ensuring optimal energy use and environmental comfort. Additionally, the FDA-certified NBR gasket ensures safe operation when used in food and beverage industries, making it suitable for pasteurization, dairy processing, and brewery operations.
In industrial scenarios, the TB A055 excels in chemical processing plants, power generation, and refrigeration systems. The connecting pipes connection type facilitates easy installation and maintenance, which is particularly beneficial in large-scale manufacturing environments where downtime needs to be minimized. Its robust stainless steel construction offers excellent resistance to corrosion and high temperatures, ensuring longevity even under harsh operating conditions.
Furthermore, the TB A055 brazed plate heat exchanger is frequently employed in marine and automotive industries for engine cooling and oil cooling applications. The machinery test report provided with each unit guarantees that the exchanger meets stringent quality and performance standards, providing users with confidence in its operational reliability.
Whether used in pharmaceuticals, food processing, or industrial cooling, the TB A055 plate and frame heat exchanger is a versatile and dependable choice. Its combination of high efficiency, certified materials, and proven design makes it a valuable component in any heat transfer system requiring precise temperature control and durability.
Our TB brand plate heat exchanger model A055, originating from China and certified with ISO9001, offers exceptional customization services to meet your specific requirements. The model 200-80D is designed with a test pressure of 1.3/2.1mpa, ensuring reliable and efficient performance.
We provide a variety of plate materials including Titanium, Nickel, Hastelloy, and Stainless Steel, catering to diverse industrial applications. Whether you need a stainless steel plate heat exchanger for corrosion resistance or a brazed plate heat exchanger for compact and high-efficiency heat transfer, we can customize the product accordingly.
Our plate and frame heat exchanger options allow for flexible connection types, utilizing connecting pipes to simplify installation and maintenance. With a weight of 50kgs, this model balances durability and ease of handling.
Choose TB’s plate heat exchanger customization services to get a high-quality, tailor-made solution that perfectly fits your operational needs.
Our Plate Heat Exchanger products come with comprehensive technical support and services to ensure optimal performance and longevity. We provide detailed installation guidelines, operation manuals, and maintenance instructions tailored to each specific model.
Technical support includes assistance with system design, selection of the appropriate plate heat exchanger based on application requirements, and troubleshooting advice to resolve any operational issues promptly.
We offer training sessions for your technical staff to familiarize them with the proper handling, cleaning, and maintenance procedures, ensuring efficient and safe operation of the equipment.
Spare parts and replacement plates are readily available to minimize downtime, and our service team is equipped to perform on-site inspections, cleaning, and repairs as needed.
Regular maintenance contracts can be arranged to provide scheduled inspections and preventive servicing to maximize the lifespan and efficiency of your plate heat exchanger.
Our commitment is to provide reliable, expert support throughout the lifecycle of your product, helping you achieve optimal heat transfer performance and energy savings.
